引言
> ps -ef | grep php
这个 Linux 命令就是一个管道命令。前面一条命令的结果交给后面一条命令来执行，就像一条管道一样让这个命令请求的结果向下流动，这就是管道模式的应用。在 PHP 设计模式中，责任链模式 很明显就是管道模式在 面向对象 语言中的应用。
Pipeline管道模式，也有人叫它装饰模式。应该说管道是装饰模式的一个变种，虽然思想都是一样的，但这个是闭包的版本，实现方式与传统装饰模式也不太一样。在laravel的源码中算是一个比较核心的设计模式了。
管道模式，或者说装饰模式的思想，就是在不改变原有程序的基础上，可以方便的在已有程序上添加新的功能。
管道模式一般是和过滤器一起使用的，什么是过滤器呢？其实就是我们要处理请求的那些中间方法，比如说上面命令中的 grep ，或者是 wc 、awk 这些的命令。大家其实很快就能发现，在 Laravel 框架中，我们的中间件就是一个个的过滤器。而我们要处理的数据，就是那个 Request 请求对象。
在说管道模式之前，让我们看一下 array_reduce() 这个函数 https://www.php.net/manual/en/function.array-reduce.php
array_reduce — 用回调函数迭代地将数组简化为单一的值
说明：
array_reduce(array $array, callable $callback, mixed $initial = null): mixed
array_reduce() 将回调函数 callback 迭代地作用到 array 数组中的每一个单元中，从而将数组简化为单一的值。
参数：
array
输入的 array。
callback
callback(mixed $carry, mixed $item): mixed
carry
携带上次迭代的返回值； 如果本次迭代是第一次，那么这个值是 initial。
item
携带了本次迭代的值。
initial
如果指定了可选参数 initial，该参数将用作处理开始时的初始值，如果数组为空，则会作为最终结果返回。
返回值：
返回结果值。
如果数组为空，并且没有指定 initial 参数，array_reduce() 返回 null。
基本工作原理：
function array_reduce(array $array, callable $callback, $initial = null) {
$result = $initial;
foreach ($array as $value) {
$result = $callback($result, $value);
}
return $result;
}
看一下下面的示例：
<?php
function sum($carry, $item)
{
$carry += $item;
return $carry;
}
function product($carry, $item)
{
$carry *= $item;
return $carry;
}
$a = array(1, 2, 3, 4, 5);
$x = array();
var_dump(array_reduce($a, "sum")); // int(15), 因为：1+2+3+4+5
var_dump(array_reduce($a, "product", 10)); // int(1200), 因为：10*1*2*3*4*5
var_dump(array_reduce($x, "sum", "No data to reduce")); // string(17) "No data to reduce"
追踪过程再看一下
<?php
function sum($carry, $item)
{
var_dump('$carry- ' . $carry);
var_dump('$item- ' . $item);
$carry += $item;
var_dump('$carry2 ' . $carry);
return $carry;
}
$a = array(1, 2, 3, 4, 5);
var_dump(array_reduce($a, "sum"));
string(9) "$carry- "
string(9) "$item- 1"
string(10) "$carry2 1"
string(10) "$carry- 1"
string(9) "$item- 2"
string(10) "$carry2 3"
string(10) "$carry- 3"
string(9) "$item- 3"
string(10) "$carry2 6"
string(10) "$carry- 6"
string(9) "$item- 4"
string(11) "$carry2 10"
string(11) "$carry- 10"
string(9) "$item- 5"
string(11) "$carry2 15"
int(15)
function product($carry, $item)
{
var_dump('$carry- ' . $carry);
var_dump('$item- ' . $item);
$carry *= $item;
var_dump('$carry2 ' . $carry);
return $carry;
}
var_dump(array_reduce($a, "product", 10));
string(11) "$carry- 10"
string(9) "$item- 1"
string(11) "$carry2 10"
string(11) "$carry- 10"
string(9) "$item- 2"
string(11) "$carry2 20"
string(11) "$carry- 20"
string(9) "$item- 3"
string(11) "$carry2 60"
string(11) "$carry- 60"
string(9) "$item- 4"
string(12) "$carry2 240"
string(12) "$carry- 240"
string(9) "$item- 5"
string(13) "$carry2 1200"
int(1200)
$x = array();
var_dump(array_reduce($x, "sum", "No data to reduce"));
string(17) "No data to reduce"
举例类
再看一个实例：
约定一个接口规范：
<?php
interface RequestInterface
{
// 我们之前讲过装饰者模式，这里是通过闭包函数实现
// 通过之后实现类及调用就可以看出
public static function handle(Closure $next);
}
遵循接口开始实现：
class Request1 implements RequestInterface
{
public static function handle(Closure $next)
{
echo "Request1 Begin." . "<br />";
$next();
echo "Request1 End." . "<br />";
}
}
class Request2 implements RequestInterface
{
public static function handle(Closure $next)
{
echo "Request2 Begin." . "<br />";
$next();
echo "Request2 End." . "<br />";
}
}
class Request3 implements RequestInterface
{
public static function handle(Closure $next)
{
echo "Request3 Begin." . "<br />";
$next();
echo "Request3 End." . "<br />";
}
}
class Request4 implements RequestInterface
{
public static function handle(Closure $next)
{
echo "Request4 Begin." . "<br />";
$next();
echo "Request4 End." . "<br />";
}
}
客户端来发出请求：
class Client
{
// 这里包含了所有的请求
private $pipes = [
'Request1',
'Request2',
'Request3',
'Request4',
];

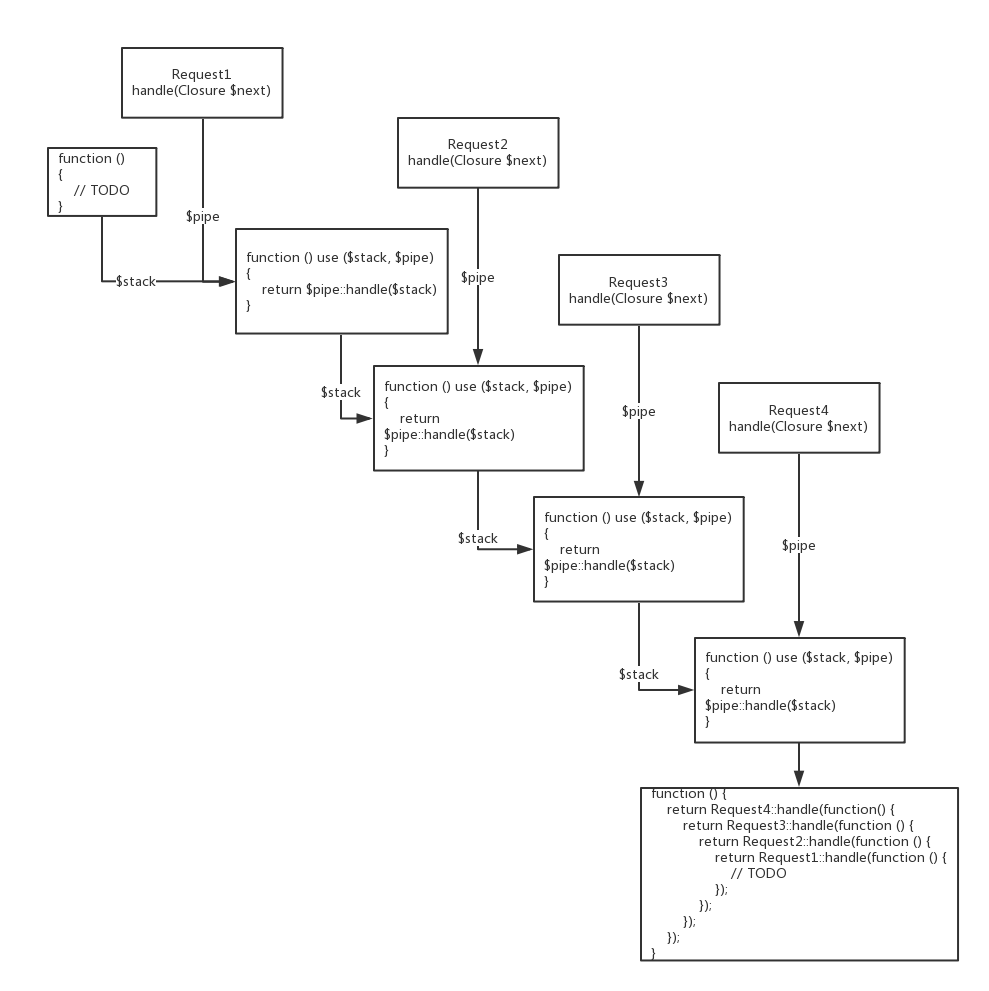

// 这里就是思维导图中默认返回的匿名回调函数
private function defaultClosure()
{
return function () {
echo '请求处理中...' . "<br />";
};
}
// 这里就是整个请求处理管道的关键
private function getSlice()
{
// $stack是一个函数，$pipe是一个闭包函数，作用于$stack
return function ($stack, $pipe) {
// 返回一个闭包
return function () use ($stack, $pipe) {
return $pipe::handle($stack);
};
};
}
// 这里是负责发起请求处理
public function then()
{
call_user_func(array_reduce($this->pipes, $this->getSlice(), $this->defaultClosure()));
}
}
$worker = new Client();
$worker->then();
运行结果：
Request4 Begin.
Request3 Begin.
Request2 Begin.
Request1 Begin.
请求处理中...
Request1 End.
Request2 End.
Request3 End.
Request4 End.
getSlice() 循环闭包返回值也是一个闭包，在不断的循环中，闭包函数就像洋葱一样，一层一层不断包裹。
最终array_reduce()返回一个匿名函数：
function () {
return Request4::handle(function () {
return Request3::handle(function () {
return Request2::handle(function () {
return Reuqest1::handle(function () {
echo '请求处理中...' . "<br />";
});
});
});
});
}
当调用call_user_func时就是执行array_reduce返回的匿名函数。
这里没有用到类来对实例对象进行包装，而是通过闭包函数完成，每一次处理在上一次处理之上进行包装，最后获得响应，就像流水线一样，一个请求进来通过一道道工序加工（包装）最后生成响应。
我们把上面的例子再丰富一下：
<?php
interface RequestInterface
{
// 我们之前讲过装饰者模式，这里是通过闭包函数实现
// 通过之后实现类及调用就可以看出
public static function handle($param, Closure $next);
}
class Request1 implements RequestInterface
{
public static function handle($param, Closure $next)
{
echo "Request1 Begin." . "<br />";
$next($param);
echo "Request1 End." . "<br />";
}
}
class Request2 implements RequestInterface
{
public static function handle($param, Closure $next)
{
echo "Request2 Begin." . "<br />";
$next($param);
echo "Request2 End." . "<br />";
}
}
class Request3 implements RequestInterface
{
public static function handle($param, Closure $next)
{
echo "Request3 Begin." . "<br />";
$next($param);
echo "Request3 End." . "<br />";
}
}
class Request4 implements RequestInterface
{
public static function handle($param, Closure $next)
{
echo "Request4 Begin." . "<br />";
$next($param);
echo "Request4 End." . "<br />";
}
}
class Client
{
// 这里包含了所有的请求
private $pipes = [
'Request1',
'Request2',
'Request3',
'Request4',
];
// 这里就是思维导图中默认返回的匿名回调函数
private function defaultClosure($param)
{
return function ($param) {
echo '请求处理中...'. $param . "<br />";
};
}
// 这里就是整个请求处理管道的关键
private function getSlice()
{
// $stack是一个函数，$pipe是一个闭包函数，作用于$stack
return function ($stack, $pipe) {
// 返回一个闭包
return function ($param) use ($stack, $pipe) {
return $pipe::handle($param, $stack);
};
};
}
// 这里是负责发起请求处理
public function then()
{
call_user_func(array_reduce(array_reverse($this->pipes), $this->getSlice(), $this->defaultClosure($param)), 'abc123');
}
}
$worker = new Client();
$worker->then();
- 增加参数 $param
- 反转中间件执行顺序
输出结果：
Request1 Begin.
Request2 Begin.
Request3 Begin.
Request4 Begin.
请求处理中...abc123
Request4 End.
Request3 End.
Request2 End.
Request1 End.
call_user_func()函数：
call_user_func(callable $callback, mixed ...$args): mixed
因为上面array_reduce([…], func(f, b), func(arg))第三个参数是函数，所以返回的是一个函数，call_user_func(func(), arg)调用时就要加第二个参数arg。
array_reduce() 返回一个匿名函数：
function ($param) {
return Request1::handle($param, function ($param) {
return Request2::handle($param, function ($param) {
return Request3::handle($param, function ($param) {
return Reuqest4::handle($param, function ($param) {
echo '请求处理中...' . $param . "<br />";
});
});
});
});
}
再改一下看下过程：
private function getSlice()
{
echo 'a1' ."<br />";
return function ($stack, $pipe) {
echo 'b2(' . $pipe . ')' ."<br />";
return function ($param) use ($stack, $pipe) {
echo 'c3(' . $pipe . ')' ."<br />";
return $pipe::handle($param, $stack);
};
};
}
输出结果：
a1
b2(Request4)
b2(Request3)
b2(Request2)
b2(Request1)
c3(Request1)
Request1 Begin.
c3(Request2)
Request2 Begin.
c3(Request3)
Request3 Begin.
c3(Request4)
Request4 Begin.
请求处理中...abc123
Request4 End.
Request3 End.
Request2 End.
Request1 End.
为什么先是多个b2呢？不应该是b2、c3交替出现吗？
核心原因：中间件管道的「构建期」与「执行期」分离。
1、构建期。array_reduce 会一次性遍历所有中间件（Request1~Request4），每次遍历都会执行：
return function ($stack, $pipe) {
echo 'b2' ."<br />"; // 此处立即输出 b2
return function ($param) use ($stack, $pipe) { ... };
};
遍历4个中间件$pipe → 输出4次 b2，也可以说用C语言写成的array_reduce()的底层代码知道需要把中间件$pipes遍历一遍，所以先把所有$pipes遍历一遍。此时仅构建中间件嵌套结构，并未执行实际业务逻辑。
2、执行期。当 call_user_func 触发最终闭包handle时，才会从外层到内层依次执行嵌套闭包：
Request1 的闭包({
echo 'c3';
Request2 的闭包({
echo 'c3';
Request3 的闭包({
echo 'c3';
Request4 的闭包({
echo 'c3';
执行默认闭包();
});
});
});
});
此时才会依次输出 c3 和中间件逻辑。
这就是Laravel中的Pipeline管道设计。
Laravel实例
在Laravel中最典型的应用就是中间件，每个中间件都是一个管道，控制器接受一个请求，请求会被每个中间件处理，最后返回给用户。
看一下请求的处理：
<?php
namespace Illuminate\Foundation\Http;
class Kernel implements KernelContract
{
/**省略若干**/
/**
* Handle an incoming HTTP request.
*
* @param \Illuminate\Http\Request $request
* @return \Illuminate\Http\Response
*/
public function handle($request)
{
try {
$request->enableHttpMethodParameterOverride();
$response = $this->sendRequestThroughRouter($request); // 调用下面的方法
} catch (Exception $e) {
$this->reportException($e);
$response = $this->renderException($request, $e);
} catch (Throwable $e) {
$this->reportException($e = new FatalThrowableError($e));
$response = $this->renderException($request, $e);
}
$this->app['events']->dispatch(
new RequestHandled($request, $response)
);
return $response;
}
/**
* Send the given request through the middleware / router.
*
* @param \Illuminate\Http\Request $request
* @return \Illuminate\Http\Response
*/
protected function sendRequestThroughRouter($request)
{
$this->app->instance('request', $request);
Facade::clearResolvedInstance('request');
$this->bootstrap();
return (new Pipeline($this->app))
->send($request)
->through($this->app->shouldSkipMiddleware() ? [] : $this->middleware)
->then($this->dispatchToRouter());
}
/**省略若干**/
}
如在论坛用户发布的贴子中，用 纯文本替换链接标记、用“*”替换敏感词、从内容中完全删除脚本标记。下面的伪代码：
<?php
public function create(Request $request)
{
// task 类集合
$pipes = [
RemoveBadWords::class,
ReplaceLinkTags::class,
RemoveScriptTags::class
];
$post = app(Pipeline::class)
->send($request->content)
->through($pipes)
->then(function ($content) {
return Post::create(['content' => 'content']);
});
// return any type of response
}
每个 “task” 类应该有一个 “handle” 方法来执行操作。每个类都确定一个统一的约束：
<?php
namespace App;
use Closure;
interface Pipe
{
public function handle($content, Closure $next);
}
替换敏感词 RemoveBadWords类：
<?php
namespace App;
use Closure;
class RemoveBadWords implements Pipe
{
public function handle($content, Closure $next)
{
// Here you perform the task and return the updated $content to the next pipe
$content = str_replace('badword', '****', $content);
return $next($content);
}
}
用于执行任务的方法应该接收两个参数，第一个参数是合格的对象，第二个参数是当前操作处理完后会接管的下一个闭包（匿名函数）。
可以使用自定义方法名称而不是“handle”。然后你需要指定pipeline要使用的方法名称，比如：
$post = app(Pipeline::class)
->send($request->content)
->through($pipes)
->via('customMethodName') // <---- This one，取代 handle 方法
->then(function ($content) {
return Post::create(['content' => $content]);
});
提交的内容将会被各个$pipes 所处理, 被处理的结果将会存储下来。
Laravel代码分析
先看下Laravel框架中Pipeline类的代码：
<?php
namespace Illuminate\Pipeline;
use Closure;
use Exception;
use Illuminate\Contracts\Container\Container;
use Illuminate\Contracts\Pipeline\Pipeline as PipelineContract;
use RuntimeException;
use Symfony\Component\Debug\Exception\FatalThrowableError;
use Throwable;
class Pipeline implements PipelineContract
{
/**
* The container implementation.
*
* @var \Illuminate\Contracts\Container\Container
*/
protected $container;
/**
* The object being passed through the pipeline.
*
* @var mixed
*/
protected $passable;
/**
* The array of class pipes.
*
* @var array
*/
protected $pipes = [];
/**
* The method to call on each pipe.
*
* @var string
*/
protected $method = 'handle';
/**
* Create a new class instance.
*
* @param \Illuminate\Contracts\Container\Container|null $container
* @return void
*/
public function __construct(Container $container = null)
{
$this->container = $container;
}
/**
* Set the object being sent through the pipeline.
*
* @param mixed $passable
* @return $this
*/
public function send($passable)
{
$this->passable = $passable;
return $this;
}
/**
* Set the array of pipes.
*
* @param array|mixed $pipes
* @return $this
*/
public function through($pipes)
{
$this->pipes = is_array($pipes) ? $pipes : func_get_args();
return $this;
}
/**
* Set the method to call on the pipes.
*
* @param string $method
* @return $this
*/
public function via($method)
{
$this->method = $method;
return $this;
}
/**
* Run the pipeline with a final destination callback.
*
* @param \Closure $destination
* @return mixed
*/
public function then(Closure $destination)
{
// 返回一个洋葱函数体
$pipeline = array_reduce(
array_reverse($this->pipes()), $this->carry(), $this->prepareDestination($destination)
);
return $pipeline($this->passable); // 在这里传入 carry() 中的 $passable参数
}
/**
* Run the pipeline and return the result.
*
* @return mixed
*/
public function thenReturn()
{
return $this->then(function ($passable) {
return $passable;
});
}
/**
* Get the final piece of the Closure onion.
*
* @param \Closure $destination
* @return \Closure
*/
protected function prepareDestination(Closure $destination)
{
return function ($passable) use ($destination) {
try {
return $destination($passable);
} catch (Exception $e) {
return $this->handleException($passable, $e);
} catch (Throwable $e) {
return $this->handleException($passable, new FatalThrowableError($e));
}
};
}
/**
* Get a Closure that represents a slice of the application onion.
*
* @return \Closure
*/
protected function carry()
{
return function ($stack, $pipe) {
return function ($passable) use ($stack, $pipe) {
try {
if (is_callable($pipe)) {
// If the pipe is a callable, then we will call it directly, but otherwise we
// will resolve the pipes out of the dependency container and call it with
// the appropriate method and arguments, returning the results back out.
return $pipe($passable, $stack);
} elseif (! is_object($pipe)) {
[$name, $parameters] = $this->parsePipeString($pipe);
// If the pipe is a string we will parse the string and resolve the class out
// of the dependency injection container. We can then build a callable and
// execute the pipe function giving in the parameters that are required.
$pipe = $this->getContainer()->make($name);
$parameters = array_merge([$passable, $stack], $parameters);
} else {
// If the pipe is already an object we'll just make a callable and pass it to
// the pipe as-is. There is no need to do any extra parsing and formatting
// since the object we're given was already a fully instantiated object.
$parameters = [$passable, $stack];
}
$carry = method_exists($pipe, $this->method)
? $pipe->{$this->method}(...$parameters)
: $pipe(...$parameters);
return $this->handleCarry($carry);
} catch (Exception $e) {
return $this->handleException($passable, $e);
} catch (Throwable $e) {
return $this->handleException($passable, new FatalThrowableError($e));
}
};
};
}
/**
* Parse full pipe string to get name and parameters.
*
* @param string $pipe
* @return array
*/
protected function parsePipeString($pipe)
{
[$name, $parameters] = array_pad(explode(':', $pipe, 2), 2, []);
if (is_string($parameters)) {
$parameters = explode(',', $parameters);
}
return [$name, $parameters];
}
/**
* Get the array of configured pipes.
*
* @return array
*/
protected function pipes()
{
return $this->pipes;
}
/**
* Get the container instance.
*
* @return \Illuminate\Contracts\Container\Container
*
* @throws \RuntimeException
*/
protected function getContainer()
{
if (! $this->container) {
throw new RuntimeException('A container instance has not been passed to the Pipeline.');
}
return $this->container;
}
/**
* Handle the value returned from each pipe before passing it to the next.
*
* @param mixed $carry
* @return mixed
*/
protected function handleCarry($carry)
{
return $carry;
}
/**
* Handle the given exception.
*
* @param mixed $passable
* @param \Exception $e
* @return mixed
*
* @throws \Exception
*/
protected function handleException($passable, Exception $e)
{
throw $e;
}
}
请求调用中，使用中间件：
(new Pipeline($this->app))
->send($request)
->through($this->app->shouldSkipMiddleware() ? [] : $this->middleware)
->then($this->dispatchToRouter());
shouldSkipMiddleware() 判断中间件是否可用：
public function shouldSkipMiddleware()
{
return $this->bound('middleware.disable') &&
$this->make('middleware.disable') === true;
}
中间件 $this->middleware 在 app/Http/Kernel.php 下，我们自己可以增加：
/**
* The application's global HTTP middleware stack.
*
* These middleware are run during every request to your application.
*
* @var array
*/
protected $middleware = [
\App\Http\Middleware\TrustProxies::class,
\App\Http\Middleware\CheckForMaintenanceMode::class,
\Illuminate\Foundation\Http\Middleware\ValidatePostSize::class,
\App\Http\Middleware\TrimStrings::class,
\Illuminate\Foundation\Http\Middleware\ConvertEmptyStringsToNull::class,
];
看一下 \App\Http\Middleware\TrimStrings::class 的代码，用于字符trim处理：
<?php
namespace App\Http\Middleware;
use Illuminate\Foundation\Http\Middleware\TrimStrings as Middleware;
class TrimStrings extends Middleware
{
/**
* The names of the attributes that should not be trimmed.
*
* @var array
*/
protected $except = [
'password',
'password_confirmation',
];
}
父类：
<?php
namespace Illuminate\Foundation\Http\Middleware;
class TrimStrings extends TransformsRequest
{
/**
* The attributes that should not be trimmed.
*
* @var array
*/
protected $except = [
//
];
/**
* Transform the given value.
*
* @param string $key
* @param mixed $value
* @return mixed
*/
protected function transform($key, $value)
{
if (in_array($key, $this->except, true)) {
return $value;
}
return is_string($value) ? trim($value) : $value;
}
}
父类：
<?php
namespace Illuminate\Foundation\Http\Middleware;
use Closure;
use Symfony\Component\HttpFoundation\ParameterBag;
class TransformsRequest
{
/**
* Handle an incoming request.
*
* @param \Illuminate\Http\Request $request
* @param \Closure $next
* @return mixed
*/
public function handle($request, Closure $next)
{
$this->clean($request);
return $next($request);
}
/**
* Clean the request's data.
*
* @param \Illuminate\Http\Request $request
* @return void
*/
protected function clean($request)
{
$this->cleanParameterBag($request->query);
if ($request->isJson()) {
$this->cleanParameterBag($request->json());
} elseif ($request->request !== $request->query) {
$this->cleanParameterBag($request->request);
}
}
/**
* Clean the data in the parameter bag.
*
* @param \Symfony\Component\HttpFoundation\ParameterBag $bag
* @return void
*/
protected function cleanParameterBag(ParameterBag $bag)
{
$bag->replace($this->cleanArray($bag->all()));
}
/**
* Clean the data in the given array.
*
* @param array $data
* @param string $keyPrefix
* @return array
*/
protected function cleanArray(array $data, $keyPrefix = '')
{
return collect($data)->map(function ($value, $key) use ($keyPrefix) {
return $this->cleanValue($keyPrefix.$key, $value);
})->all();
}
/**
* Clean the given value.
*
* @param string $key
* @param mixed $value
* @return mixed
*/
protected function cleanValue($key, $value)
{
if (is_array($value)) {
return $this->cleanArray($value, $key.'.');
}
return $this->transform($key, $value);
}
/**
* Transform the given value.
*
* @param string $key
* @param mixed $value
* @return mixed
*/
protected function transform($key, $value)
{
return $value;
}
}
除了中间件，还有路由执行：
<?php
namespace Illuminate\Routing;
class Router implements BindingRegistrar, RegistrarContract
{
/**省略若干**/
/**
* Run the given route within a Stack "onion" instance.
*
* @param \Illuminate\Routing\Route $route
* @param \Illuminate\Http\Request $request
* @return mixed
*/
protected function runRouteWithinStack(Route $route, Request $request)
{
$shouldSkipMiddleware = $this->container->bound('middleware.disable') &&
$this->container->make('middleware.disable') === true;
$middleware = $shouldSkipMiddleware ? [] : $this->gatherRouteMiddleware($route);
return (new Pipeline($this->container))
->send($request)
->through($middleware)
->then(function ($request) use ($route) {
return $this->prepareResponse(
$request, $route->run()
);
});
}
/**省略若干**/
}
队列执行：
<?php
namespace Illuminate\Queue;
class CallQueuedHandler
{
/**省略若干**/
/**
* Dispatch the given job / command through its specified middleware.
*
* @param \Illuminate\Contracts\Queue\Job $job
* @param mixed $command
* @return mixed
*/
protected function dispatchThroughMiddleware(Job $job, $command)
{
return (new Pipeline($this->container))->send($command)
->through(array_merge(method_exists($command, 'middleware') ? $command->middleware() : [], $command->middleware ?? []))
->then(function ($command) use ($job) {
return $this->dispatcher->dispatchNow(
$command, $this->resolveHandler($job, $command)
);
});
}
/**省略若干**/
}
<?php
namespace Illuminate\Bus;
class Dispatcher implements QueueingDispatcher
{
/**省略若干**/
/**
* The pipeline instance for the bus.
*
* @var \Illuminate\Pipeline\Pipeline
*/
protected $pipeline;
public function __construct(Container $container, Closure $queueResolver = null)
{
$this->container = $container;
$this->queueResolver = $queueResolver;
$this->pipeline = new Pipeline($container);
}
/**省略若干**/
}
Pipeline源码
Pipeline 服务提供者在服务启动时，引入了注册配置 app\config\app.php 的 providers 数组：
<?php
return [
/*
|--------------------------------------------------------------------------
| Application Name
|--------------------------------------------------------------------------
|
| This value is the name of your application. This value is used when the
| framework needs to place the application's name in a notification or
| any other location as required by the application or its packages.
|
*/
'name' => env('APP_NAME', 'Laravel'),
/*
|--------------------------------------------------------------------------
| Application Environment
|--------------------------------------------------------------------------
|
| This value determines the "environment" your application is currently
| running in. This may determine how you prefer to configure various
| services the application utilizes. Set this in your ".env" file.
|
*/
'env' => env('APP_ENV', 'production'),
/*
|--------------------------------------------------------------------------
| Application Debug Mode
|--------------------------------------------------------------------------
|
| When your application is in debug mode, detailed error messages with
| stack traces will be shown on every error that occurs within your
| application. If disabled, a simple generic error page is shown.
|
*/
'debug' => (bool) env('APP_DEBUG', false),
/*
|--------------------------------------------------------------------------
| Application URL
|--------------------------------------------------------------------------
|
| This URL is used by the console to properly generate URLs when using
| the Artisan command line tool. You should set this to the root of
| your application so that it is used when running Artisan tasks.
|
*/
'url' => env('APP_URL', 'http://localhost'),
'asset_url' => env('ASSET_URL', null),
/*
|--------------------------------------------------------------------------
| Application Timezone
|--------------------------------------------------------------------------
|
| Here you may specify the default timezone for your application, which
| will be used by the PHP date and date-time functions. We have gone
| ahead and set this to a sensible default for you out of the box.
|
*/
'timezone' => 'Asia/Shanghai',
/*
|--------------------------------------------------------------------------
| Application Locale Configuration
|--------------------------------------------------------------------------
|
| The application locale determines the default locale that will be used
| by the translation service provider. You are free to set this value
| to any of the locales which will be supported by the application.
|
*/
'locale' => 'en',
/*
|--------------------------------------------------------------------------
| Application Fallback Locale
|--------------------------------------------------------------------------
|
| The fallback locale determines the locale to use when the current one
| is not available. You may change the value to correspond to any of
| the language folders that are provided through your application.
|
*/
'fallback_locale' => 'en',
/*
|--------------------------------------------------------------------------
| Faker Locale
|--------------------------------------------------------------------------
|
| This locale will be used by the Faker PHP library when generating fake
| data for your database seeds. For example, this will be used to get
| localized telephone numbers, street address information and more.
|
*/
'faker_locale' => 'en_US',
/*
|--------------------------------------------------------------------------
| Encryption Key
|--------------------------------------------------------------------------
|
| This key is used by the Illuminate encrypter service and should be set
| to a random, 32 character string, otherwise these encrypted strings
| will not be safe. Please do this before deploying an application!
|
*/
'key' => env('APP_KEY'),
'cipher' => 'AES-256-CBC',
/*
|--------------------------------------------------------------------------
| Autoloaded Service Providers
|--------------------------------------------------------------------------
|
| The service providers listed here will be automatically loaded on the
| request to your application. Feel free to add your own services to
| this array to grant expanded functionality to your applications.
|
*/
'providers' => [
/*
* Laravel Framework Service Providers...
*/
Illuminate\Auth\AuthServiceProvider::class,
Illuminate\Broadcasting\BroadcastServiceProvider::class,
Illuminate\Bus\BusServiceProvider::class,
Illuminate\Cache\CacheServiceProvider::class,
Illuminate\Foundation\Providers\ConsoleSupportServiceProvider::class,
Illuminate\Cookie\CookieServiceProvider::class,
Illuminate\Database\DatabaseServiceProvider::class,
Illuminate\Encryption\EncryptionServiceProvider::class,
Illuminate\Filesystem\FilesystemServiceProvider::class,
Illuminate\Foundation\Providers\FoundationServiceProvider::class,
Illuminate\Hashing\HashServiceProvider::class,
Illuminate\Mail\MailServiceProvider::class,
Illuminate\Notifications\NotificationServiceProvider::class,
Illuminate\Pagination\PaginationServiceProvider::class,
Illuminate\Pipeline\PipelineServiceProvider::class, // 注册 Pipeline
Illuminate\Queue\QueueServiceProvider::class,
Illuminate\Redis\RedisServiceProvider::class,
Illuminate\Auth\Passwords\PasswordResetServiceProvider::class,
Illuminate\Session\SessionServiceProvider::class,
Illuminate\Translation\TranslationServiceProvider::class,
Illuminate\Validation\ValidationServiceProvider::class,
Illuminate\View\ViewServiceProvider::class,
/*
* Package Service Providers...
*/
/*
* Application Service Providers...
*/
App\Providers\AppServiceProvider::class,
App\Providers\AuthServiceProvider::class,
// App\Providers\BroadcastServiceProvider::class,
App\Providers\EventServiceProvider::class,
App\Providers\RouteServiceProvider::class,
],
/*
|--------------------------------------------------------------------------
| Class Aliases
|--------------------------------------------------------------------------
|
| This array of class aliases will be registered when this application
| is started. However, feel free to register as many as you wish as
| the aliases are "lazy" loaded so they don't hinder performance.
|
*/
'aliases' => [
'App' => Illuminate\Support\Facades\App::class,
'Arr' => Illuminate\Support\Arr::class,
'Artisan' => Illuminate\Support\Facades\Artisan::class,
'Auth' => Illuminate\Support\Facades\Auth::class,
'Blade' => Illuminate\Support\Facades\Blade::class,
'Broadcast' => Illuminate\Support\Facades\Broadcast::class,
'Bus' => Illuminate\Support\Facades\Bus::class,
'Cache' => Illuminate\Support\Facades\Cache::class,
'Config' => Illuminate\Support\Facades\Config::class,
'Cookie' => Illuminate\Support\Facades\Cookie::class,
'Crypt' => Illuminate\Support\Facades\Crypt::class,
'DB' => Illuminate\Support\Facades\DB::class,
'Eloquent' => Illuminate\Database\Eloquent\Model::class,
'Event' => Illuminate\Support\Facades\Event::class,
'File' => Illuminate\Support\Facades\File::class,
'Gate' => Illuminate\Support\Facades\Gate::class,
'Hash' => Illuminate\Support\Facades\Hash::class,
'Lang' => Illuminate\Support\Facades\Lang::class,
'Log' => Illuminate\Support\Facades\Log::class,
'Mail' => Illuminate\Support\Facades\Mail::class,
'Notification' => Illuminate\Support\Facades\Notification::class,
'Password' => Illuminate\Support\Facades\Password::class,
'Queue' => Illuminate\Support\Facades\Queue::class,
'Redirect' => Illuminate\Support\Facades\Redirect::class,
'Redis' => Illuminate\Support\Facades\Redis::class,
'Request' => Illuminate\Support\Facades\Request::class,
'Response' => Illuminate\Support\Facades\Response::class,
'Route' => Illuminate\Support\Facades\Route::class,
'Schema' => Illuminate\Support\Facades\Schema::class,
'Session' => Illuminate\Support\Facades\Session::class,
'Storage' => Illuminate\Support\Facades\Storage::class,
'Str' => Illuminate\Support\Str::class,
'URL' => Illuminate\Support\Facades\URL::class,
'Validator' => Illuminate\Support\Facades\Validator::class,
'View' => Illuminate\Support\Facades\View::class,
],
];
PipelineServiceProvider 类源码：
<?php
namespace Illuminate\Pipeline;
use Illuminate\Contracts\Pipeline\Hub as PipelineHubContract;
use Illuminate\Contracts\Support\DeferrableProvider;
use Illuminate\Support\ServiceProvider;
class PipelineServiceProvider extends ServiceProvider implements DeferrableProvider
{
/**
* Register the service provider.
*
* @return void
*/
public function register()
{
$this->app->singleton(
PipelineHubContract::class, Hub::class
);
}
/**
* Get the services provided by the provider.
*
* @return array
*/
public function provides()
{
return [
PipelineHubContract::class,
];
}
}
Illuminate\Contracts\Pipeline\Hub 源码：
<?php
namespace Illuminate\Contracts\Pipeline;
interface Hub
{
/**
* Send an object through one of the available pipelines.
*
* @param mixed $object
* @param string|null $pipeline
* @return mixed
*/
public function pipe($object, $pipeline = null);
}
Illuminate\Pipeline\Hub 源码：
<?php
namespace Illuminate\Pipeline;
use Closure;
use Illuminate\Contracts\Container\Container;
use Illuminate\Contracts\Pipeline\Hub as HubContract;
class Hub implements HubContract
{
/**
* The container implementation.
*
* @var \Illuminate\Contracts\Container\Container|null
*/
protected $container;
/**
* All of the available pipelines.
* 所有可用的管道.
*
* @var array
*/
protected $pipelines = [];
/**
* Create a new Hub instance.
*
* @param \Illuminate\Contracts\Container\Container|null $container
* @return void
*/
public function __construct(Container $container = null)
{
$this->container = $container;
}
/**
* Define the default named pipeline.
* 定义默认命名管道.
*
* @param \Closure $callback
* @return void
*/
public function defaults(Closure $callback)
{
return $this->pipeline('default', $callback);
}
/**
* Define a new named pipeline.
* 定义新的管道名，存入 $pipelines .
*
* @param string $name
* @param \Closure $callback
* @return void
*/
public function pipeline($name, Closure $callback)
{
$this->pipelines[$name] = $callback;
}
/**
* Send an object through one of the available pipelines.
* 通过其中一个可用管道发送对象。
*
* @param mixed $object
* @param string|null $pipeline
* @return mixed
*/
public function pipe($object, $pipeline = null)
{
$pipeline = $pipeline ?: 'default';
return call_user_func(
$this->pipelines[$pipeline], new Pipeline($this->container), $object
);
}
}
Illuminate\Contracts\Pipeline\Pipeline 接口源码：
<?php
namespace Illuminate\Contracts\Pipeline;
use Closure;
interface Pipeline
{
/**
* Set the traveler object being sent on the pipeline.
*
* @param mixed $traveler
* @return $this
*/
public function send($traveler);
/**
* Set the stops of the pipeline.
*
* @param dynamic|array $stops
* @return $this
*/
public function through($stops);
/**
* Set the method to call on the stops.
*
* @param string $method
* @return $this
*/
public function via($method);
/**
* Run the pipeline with a final destination callback.
*
* @param \Closure $destination
* @return mixed
*/
public function then(Closure $destination);
}
Illuminate\Pipeline\Pipeline 源码：
<?php
namespace Illuminate\Pipeline;
use Closure;
use Exception;
use Illuminate\Contracts\Container\Container;
use Illuminate\Contracts\Pipeline\Pipeline as PipelineContract;
use RuntimeException;
use Symfony\Component\Debug\Exception\FatalThrowableError;
use Throwable;
class Pipeline implements PipelineContract
{
/**
* The container implementation.
* 通过管道传递的对象。
*
* @var \Illuminate\Contracts\Container\Container
*/
protected $container;
/**
* The object being passed through the pipeline.
*
* @var mixed
*/
protected $passable;
/**
* The array of class pipes.
* 类管道的数组。
*
* @var array
*/
protected $pipes = [];
/**
* The method to call on each pipe.
* 要在每个管道上调用的方法。
*
* @var string
*/
protected $method = 'handle';
/**
* Create a new class instance.
*
* @param \Illuminate\Contracts\Container\Container|null $container
* @return void
*/
public function __construct(Container $container = null)
{
$this->container = $container;
}
/**
* Set the object being sent through the pipeline.
* 设置通过管道发送的对象
*
* @param mixed $passable
* @return $this
*/
public function send($passable)
{
$this->passable = $passable;
return $this;
}
/**
* Set the array of pipes.
* 设置管道数组。
*
* @param array|mixed $pipes
* @return $this
*/
public function through($pipes)
{
$this->pipes = is_array($pipes) ? $pipes : func_get_args();
return $this;
}
/**
* Set the method to call on the pipes.
* 设置要在管道上调用的方法,这里修改默认管道调用 handle 方法
*
* @param string $method
* @return $this
*/
public function via($method)
{
$this->method = $method;
return $this;
}
/**
* Run the pipeline with a final destination callback.
* 使用最终目标回调运行管道（核心点）
*
* @param \Closure $destination
* @return mixed
*/
public function then(Closure $destination)
{
$pipeline = array_reduce(
array_reverse($this->pipes()), $this->carry(), $this->prepareDestination($destination)
);
return $pipeline($this->passable);
}
/**
* Run the pipeline and return the result.
* 运行管道并返回结果
*
* @return mixed
*/
public function thenReturn()
{
return $this->then(function ($passable) {
return $passable;
});
}
/**
* Get the final piece of the Closure onion.
*
* @param \Closure $destination
* @return \Closure
*/
protected function prepareDestination(Closure $destination)
{
return function ($passable) use ($destination) {
try {
return $destination($passable);
} catch (Exception $e) {
return $this->handleException($passable, $e);
} catch (Throwable $e) {
return $this->handleException($passable, new FatalThrowableError($e));
}
};
}
/**
* Get a Closure that represents a slice of the application onion.
*
* @return \Closure
*/
protected function carry()
{
return function ($stack, $pipe) {
return function ($passable) use ($stack, $pipe) {
try {
if (is_callable($pipe)) {
// If the pipe is a callable, then we will call it directly, but otherwise we
// will resolve the pipes out of the dependency container and call it with
// the appropriate method and arguments, returning the results back out.
return $pipe($passable, $stack);
} elseif (! is_object($pipe)) {
[$name, $parameters] = $this->parsePipeString($pipe);
// If the pipe is a string we will parse the string and resolve the class out
// of the dependency injection container. We can then build a callable and
// execute the pipe function giving in the parameters that are required.
$pipe = $this->getContainer()->make($name);
$parameters = array_merge([$passable, $stack], $parameters);
} else {
// If the pipe is already an object we'll just make a callable and pass it to
// the pipe as-is. There is no need to do any extra parsing and formatting
// since the object we're given was already a fully instantiated object.
$parameters = [$passable, $stack];
}
$carry = method_exists($pipe, $this->method)
? $pipe->{$this->method}(...$parameters)
: $pipe(...$parameters);
return $this->handleCarry($carry);
} catch (Exception $e) {
return $this->handleException($passable, $e);
} catch (Throwable $e) {
return $this->handleException($passable, new FatalThrowableError($e));
}
};
};
}
/**
* Parse full pipe string to get name and parameters.
*
* @param string $pipe
* @return array
*/
protected function parsePipeString($pipe)
{
[$name, $parameters] = array_pad(explode(':', $pipe, 2), 2, []);
if (is_string($parameters)) {
$parameters = explode(',', $parameters);
}
return [$name, $parameters];
}
/**
* Get the array of configured pipes.
*
* @return array
*/
protected function pipes()
{
return $this->pipes;
}
/**
* Get the container instance.
*
* @return \Illuminate\Contracts\Container\Container
*
* @throws \RuntimeException
*/
protected function getContainer()
{
if (! $this->container) {
throw new RuntimeException('A container instance has not been passed to the Pipeline.');
}
return $this->container;
}
/**
* Handle the value returned from each pipe before passing it to the next.
*
* @param mixed $carry
* @return mixed
*/
protected function handleCarry($carry)
{
return $carry;
}
/**
* Handle the given exception.
*
* @param mixed $passable
* @param \Exception $e
* @return mixed
*
* @throws \Exception
*/
protected function handleException($passable, Exception $e)
{
throw $e;
}
}
array_reduce的C语言源码
在 https://github.com/php/php-src/blob/master/ext/standard/array.c 中：
参数解析 → 初始化返回值 → 获取哈希表 → 遍历数组元素 → 传递(累积结果, 当前元素) → 调用回调 → 更新累积结果 → 返回最终值
参考资料
Laravel框架源码分析之Pipeline管道设计 https://zhuanlan.zhihu.com/p/669130742
一文了解Laravel中的Pipeline（管道） https://www.php.cn/faq/497864.html
Laravel系列6.4 管道过滤器 https://cloud.tencent.com/developer/article/2232112
laravel5.5源码笔记（五、Pipeline管道模式） https://www.cnblogs.com/wyycc/p/9986757.html
深度挖掘 Laravel 生命周期 https://learnku.com/articles/10421/depth-mining-of-laravel-life-cycle
